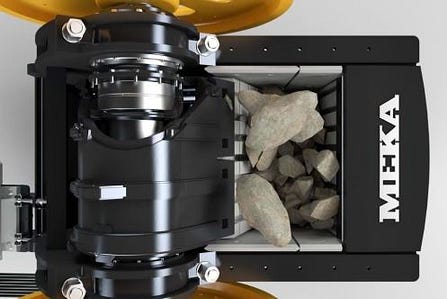

JAW CRUSHER

Jaw crusher reduce large rocks or ore by means of compression. Mechanical pressure is applied using the crusher’s two jaws; one is fixed while the other reciprocates.



There are also primary and secondary types of these crushers.

Jaw crushers are one of the most commonly preferred crushers due to their ability to crush all kinds of materials of any hardness, as well as their low-cost operation and easy maintenance.

SUCCESS IN EVERY HARDNESS

Jaw Crusher Wide range of crushing for soft to very hard materials. For various materials, crushing efficiency is increased by different jaw types.

TOOGLE PLATE

The optimal-angle toggle plate generates extra crushing force and at the same time provides security for the drive system.

SIDE LINERS

Manganese steel casting side liners provide resistance against abrasion.

FLYWHEEL

Ductile cast-iron flywheel (GGG-60 quality).

ADJUSTMENT

The closed side setting can be adjusted using shim plates with hydraulic power.

JAWS

Reversible high manganese cast steel jaw plates. Different profiles are available for different rock types.

BODY

Low-carbon steel welded body with heat treatment for stress relief.

SHAFT & BEARINGS

jaw crusher Precision-machined, drop-forged, heat-treated (42Cr, Mo4) steel eccentric shaft. The larger eccentricity of pitman shaft provides a motion that pulls the material to the bottom of the jaw plate.

Spherical, self-aligning roller bearings, straight-bore pitman bearings and tapered-bore body bearings provide maximum strength to the pitman shaft and bearings for a long extended maintenance life.

THE RIGHT CHOICE OF EVERY PLANT

With their special design that provides high efficiency and low operation costs, Meka jaw crushers are truly beneficial to your company.
